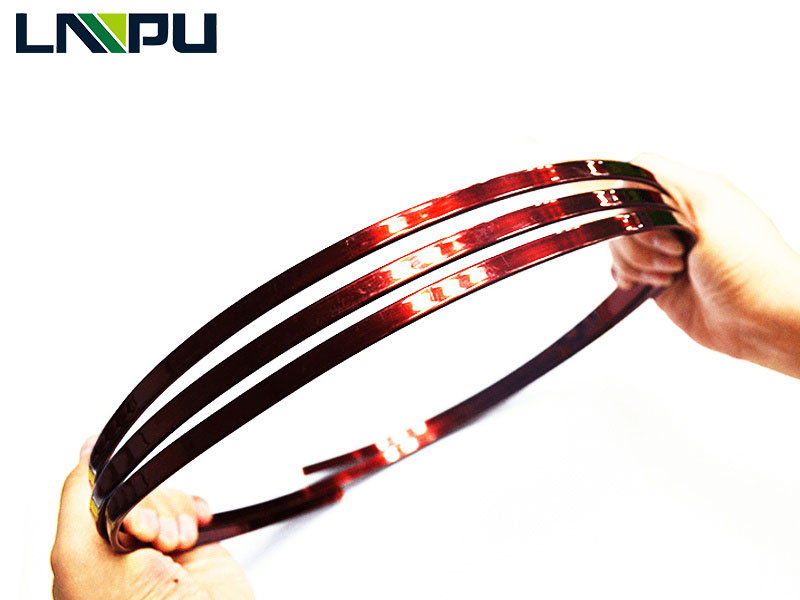

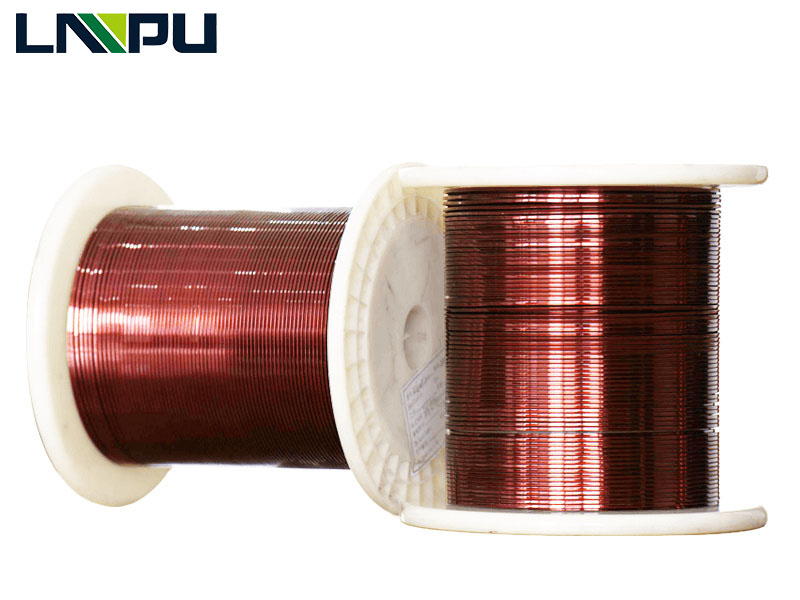

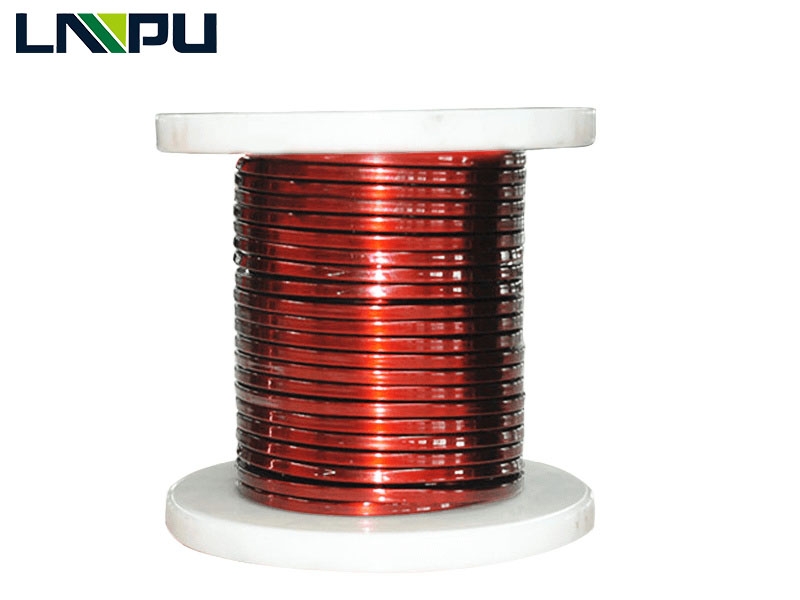

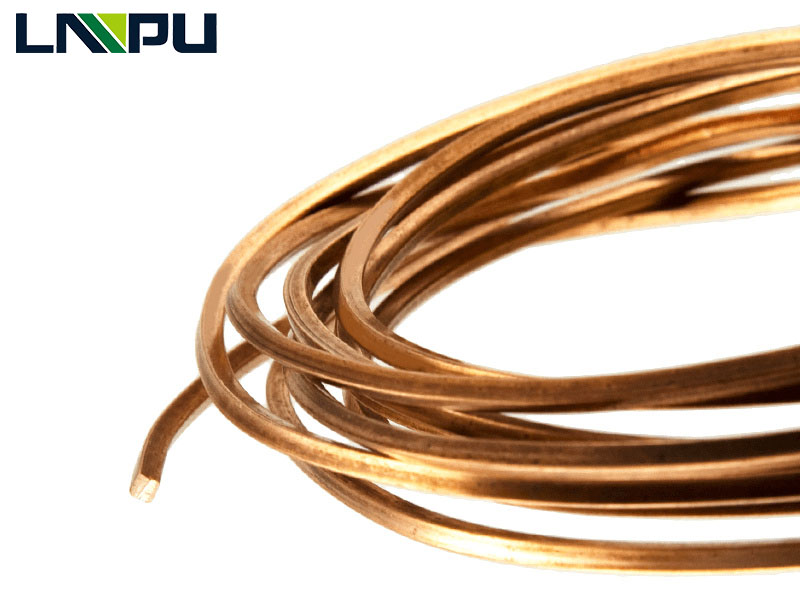

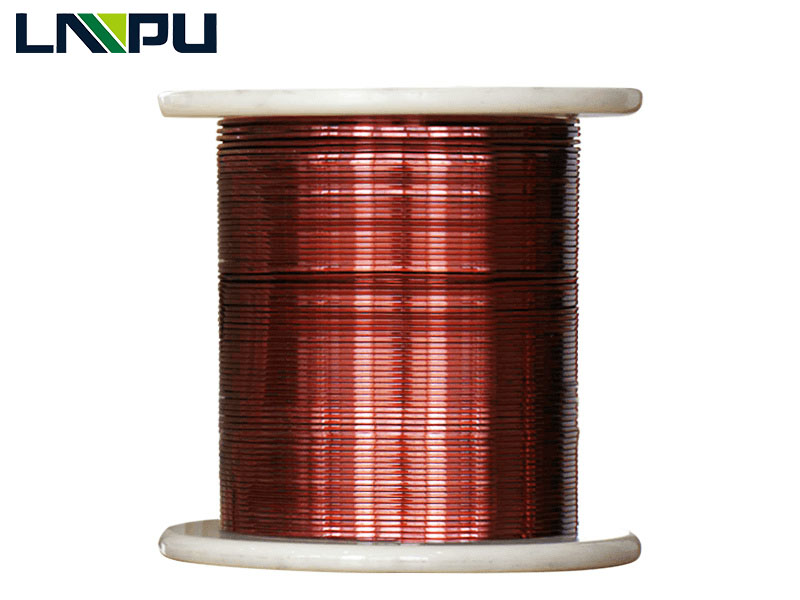

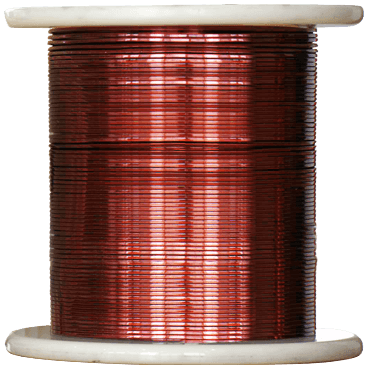

Enameled Square Copper Wire

  • DiameterRange (mm): a(b): 0.45-6.0mm
  • Temperature Class (C): 155, 180, 200, 220
  • Standard: IEC, NEMA, GB, JIS
  • Color: natural color, red, blue, green and so on
  • UL NO: E345303
  • Package: 30kg/50kg/150kg wooden spool, plastic spool or according to customer requirements.

We're here to help:Easy ways to get the answers you need.

Enameled Square Copper Wire

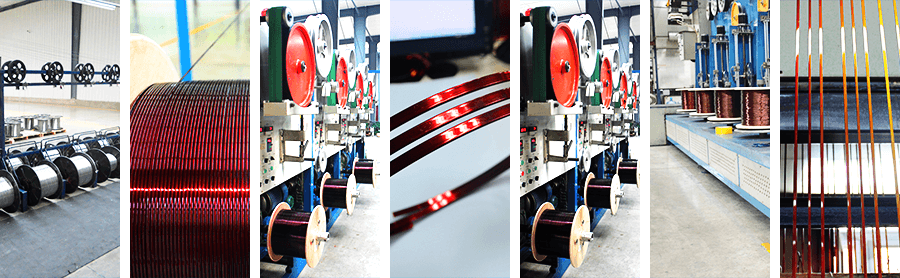

Production Process
Extrude & Draw Stretch the Thread Ultrasonic Clean
Panit Toast Spool

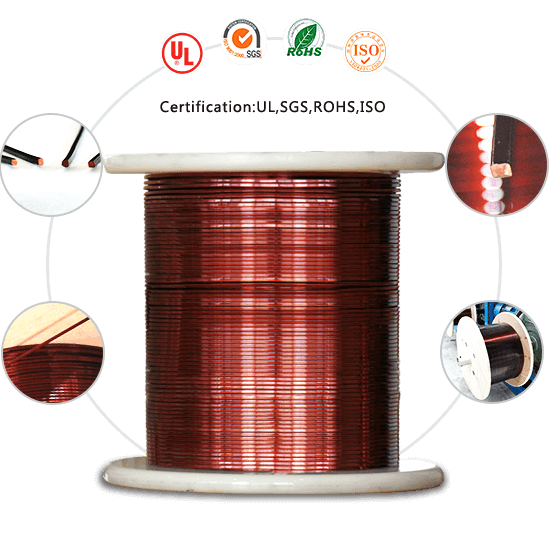

Production Characteristics

  • 1.Our Enameled Square Copper Wire has excellent insulation.

  • 2.Our Enameled Square Copper Wire imports foreign technology and equipments cooperating with foreign experts and foreign companies.

  • 3. Our Enameled Square Copper Wire has good waterproof performance.

  • 4. Our Enameled Square Copper Wire’s insulation layer and its copper paste firmly. It has good environment resistant and good stability.

  • Insulation: ELANTAS

  • Intelligent on-line monitoring equipment

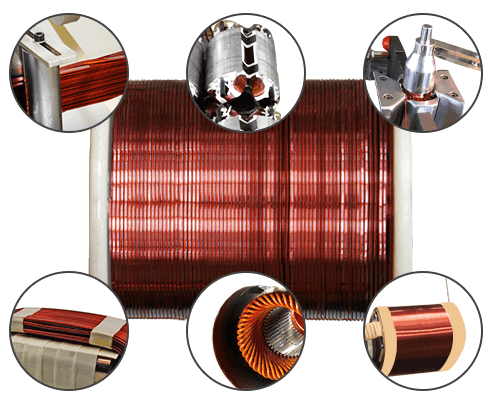

The Application Of enameled square copper wire
Typical application include:
Transformers/Generators/Refrigeration systems/Class C generators/UPS power supplies/Electronic transformers.

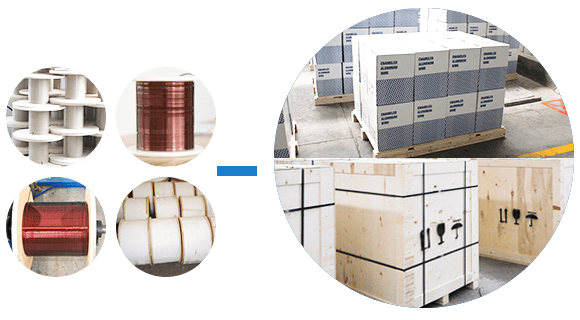

Plastic spool or wooden spool, flat wire length are customizable;
The usual spool specifications :
30kg/50kg/150kg wooden spool, plastic spool or according to customer requirements.
About The Packing, We Can According To Customers' Requirement!
Test of Main technical
The following is mian technical test;The set standards according to customers’ requirement. Besides,We Providing OEM,Please pay attention to that.
Item Requirement of the standards


Electrical resistivity

0.017241/0.02785Ω mm²/m

Breakdown voltage over1000/2000V
Heat shock The minimum Heat shock temperature 200/220/240℃
Resistance to solvents Standard solvent.Use a pencil of hardness”2H”the coating shall not be removed
Cut Through 320,360,400℃, 2mins not break down
